Product Description

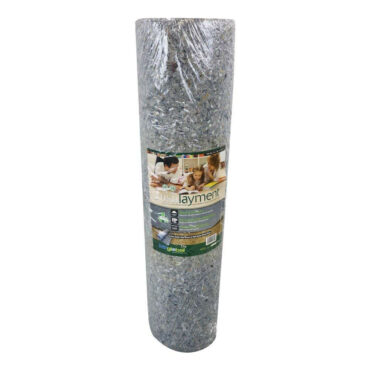

Pad glued-down and nailed-down hardwood or engineered wood floors with Insulayment to dampen sounds and conserve warmth. Simply glue the pad to a structurally solid concrete or wood subfloor and then adhere the planks directly to it. For ceramic tile, use latex-modified thin-set mortar both below and above the Insulayment. The subfloor and installation materials must be in accordance with industry standards as outlined by the National Wood Flooring Association for wood floor applications, the Tile Council of America for ceramic and porcelain tile and natural stone applications.
- Ideal for glue-down or nail-down wood flooring as well as ceramic tile
- Can be used in conjunction with heated underlayment to fill in small non-heated areas for installations beneath glue-down wood flooring or ceramic tile
- No attached vapor barrier, allows excellent adhesion
Insulayment Spec Sheet
Click Here to View
Insulayment Installation Instructions
Click Here to View
Insulayment Sound Ratings Chart
Click Here to View
Specifications
- Weight: 13 lb
- Width: 12 in
- Depth: 12 in
- Height: 36 in
- For Use With: Tile Flooring
- Sq Ft Coverage: 360
- Antimicrobial: Yes
- Attached Vapor Barrier: Non Attached
- Compression Resistant: Yes
- Moisture Resistant: Yes
- Mold and Mildew Resistant: Yes
- Radiant Heat: Compatible
- Material: Fiber
- IIC Sound Rating - Impact Insulation Sound: 60
- STC SOUND RATING - SOUND TRANSMISSION CLASS: 50
- DELTA IIC SOUND RATING: 20
- THICKNESS: .109"
- R-VALUE: 0.57
- Water Vapor Transmission Rate: No Moisture Barrier
